Internal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly Line

  • 1
  • 2
  • 3

Brand Name : GELON

Model Number : GN-BK-300A

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 set

Price : USD 560-910 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 15-20 works day

Packaging Details : Standard export package

Product name : Internal Voltage Resistance Tester

Ac current frequency : 1KHZ±0.1KHZ

Calibration : Potentiometer calibration（stand box additional）

Test alarming : internal resistance pass alarmor fail alarm

Holder : Air plug，can holder box or testing line

voltage : AC220V，50HZ，Power≤20W

Size（W×D×H） : 340×380×110 mm

Working temperature : temperature：20℃±5℃，Humidity≤85%

Contact Now

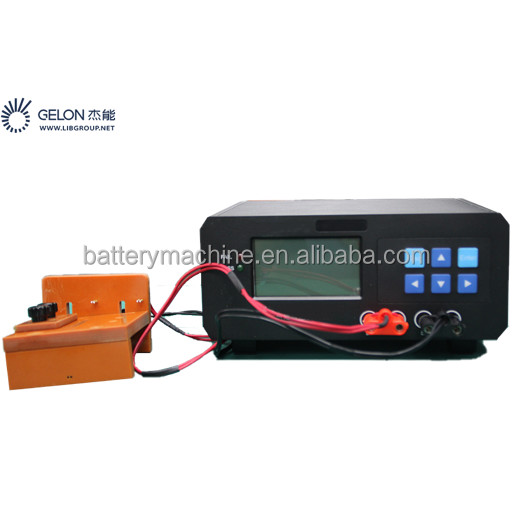

Gelon Lithium Ion Battery Tester Internal Voltage Resistance Tester Battery Research Battery Assembly Line



Description:

1) simplicity of operator

2) practical and reliable

3) high performance

4) high quality

5) lower price



Index:

Technicle parameters
Type of tester Ac internal resistance tester

Way of tester four-line measurement

Ac current frequency 1KHZ±0.1KHZ

Voltage Voltage: Two selectable ranges
  DC0～5.000V, resolution 1 mV,Accuracy±(0.2%rdg+5dgt).
  DC5.00v～20.00V, resolution 10mV,Accuracy±(0.2%rdg+5dgt)
internal resistance Battery internal resistance: Two selectable ranges
  Low range: 3mΩ~300.0mΩ Current 10mA ±0.3%rdg+5dgt.
  High range: 300mΩ~3000mΩ Curent 1mA ±0.3%rdg+5dgt.

Calibration Potentiometer calibration(stand box additional)

Test alarming internal resistancepass alarmor fail alarm

Holder Air plug,can holder box or testing line

Specs
woltage AC220V,50HZ,Power≤20W
Size(W×D×H) 340×380×110 mm
Working temperature temperature:20℃±5℃,Humidity≤85%






Internal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly LineInternal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly Line






Internal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly LineInternal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly LineInternal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly Line



Internal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly LineInternal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly Line



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
