Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p

Name: Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research GnS100p
Brand: Gelon
Price: 2060 USD

Buy cheap Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p product

Brand Name : Gelon

Model Number : GN-S100P

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD2060-2250/set

Payment Terms : T/T, L/C

Supply Ability : 100set/month

Delivery Time : 25 working days

Packaging Details : Export standard package

Standard Cutting die : Cathode electrode 56 * 43mm / Anode electrode 58 * 45mm

Cutting size : Max.L 120*W 80mm

Cutting pressure : Max.1T

Cutting stroke : 12mm

Cutting burr : Vertical burr ≤12μm Horizontal burr ≤20μm

Cutting thickness : Max.0.5mm

Cutting precision : ±0.1mm

Air supply : 0.5~0.8MPa Argon, nitrogen gas cylinders, or 0.7MPa compressed air

Power : 100W

Equipment dimensions : L300mm*W250mm*H 340mm

Net weight : About 34Kg

Contact Now

Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine

For Pouch Battery Research Gn-S100p

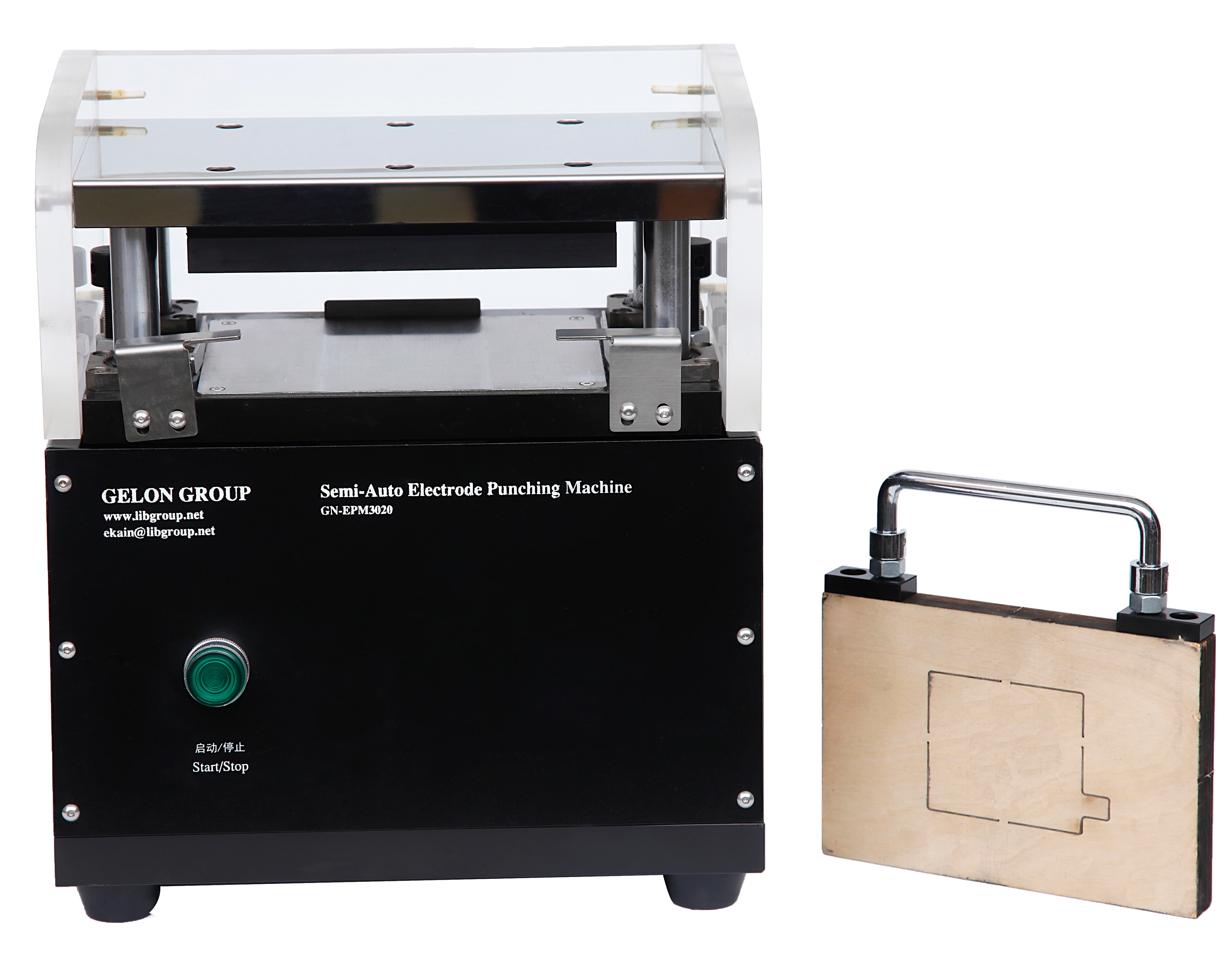

I. Overview of equipment
1. Semi-automatic die cutting machine is a device used in cathode and anode electrode die cutting of lithium ion stacking batteries.The equipment uses the pneumatic way to die cut for single electrode. It can be placed in the glove box, and we can provide various shapes of knife mold according to customer requirements to achieve the forming and die cutting of different battery sizes.
Plate electrode feeding, knife template to achieve die cutting, and can be used in the glove box;

II. Equipment characteristics
1.Cylinder drive, and the cutting pressure and speed can be adjusted.
2.Die cutting products has small burr, no powder, no indentation and other bad appearance;
3.The cutting die is made of a drawer-type design to ensure safe operation.
4. The replacement of the cutting die is easy, convenient and fast.
5. A standard set of cathode and anode blade die, can also be made according to customer requirements;

III. Technical parameters of the equipment

Name	Parameter	Remarks
Standard Cutting die	Cathode electrode 56 * 43mm / Anode electrode 58 * 45mm	It can be customized according to customer request
Cutting size	Max.L 120*W 80mm	Includes battery tab
Cutting pressure	Max.1T (1MPa compressed gas)	Recommended adjusting pressure, 500Kg(0.5MPa)
Cutting stroke	12mm	Distance between the cutting die and the cutting plate
Cutting die life	Ten thousand times
Cutting burr	Vertical burr ≤12μm Horizontal burr ≤20μm
Cutting thickness	Max.0.5mm	The foil are made of aluminum / copper
Cutting precision	±0.1mm
Air supply	0.5~0.8MPa Argon, nitrogen gas cylinders, or 0.7MPa compressed air	Compressed air in the glove box is not recommended
Power	100W
Equipment, dimensions	L300mmW250mmH 340mm
Packing dimension	About L400W340H450mm
Net weight	About 34Kg
Gross weight	About 43kg
The site to use		It can be used in the glove box. Please check whether the glove box space matches the overall size of the equipment
Warranty time	One-year warranty, lifetime maintenance
