Z-Folding Pouch Cell Assembly Equipment Fully Automatic Stacking Machine

Fully Automatic Stacking Machine Z-Folding Pouch Cell Assembly Equipment

This device uses the manipulator left and right to move, in the two poles limit to pick up the electrode material, in the middle position alternately put the materials to stack, and simultaneously completes the Z-shaped folding of separator during the left and right movement. So back and forth to finish the entire core's stacking and assembling.The manipulator adopts linear servo motion module achieving high speed, smooth and accuracy.Separator put materials with constant tension, and in the process of putting materials, there is a correction mechanism to control the neatly consistent discharge. The electrode silo adopts linear servo motion module to convert different electrode sheets.

• The electrode transfer and loading adopts precision servo motor control to ensure the accurate positioning of the laminations.
• Electrode bending double-chip device for electrodes bending can avoid sucking multiple pieces at a time
• Electrode secondary re-preposition. The alignment device ensures accurate positioning of the electrode
• The separator rectifying device can ensure the accurate
• The automatic ion blowing device of the material box makes the electrode automatically drift away to ensure that the electrode will not suck too much
• Secondary counter-position blowing dust removal device make surethe stacking electrodes are free of dust
• Cathode and anode electrode lifter guarantee the cathode and anode electrodes are always at the same height;
• The separator unwinding has the function of constant tension, which ensures that the separator tension is basically constant when stacking.
• The separator is cut off automatically;
• Battery core automatic taping.

Z-Folding Pouch Cell Assembly Equipment

Fully Automatic Stacking Machine

single phase Pouch Cell Assembly Equipment

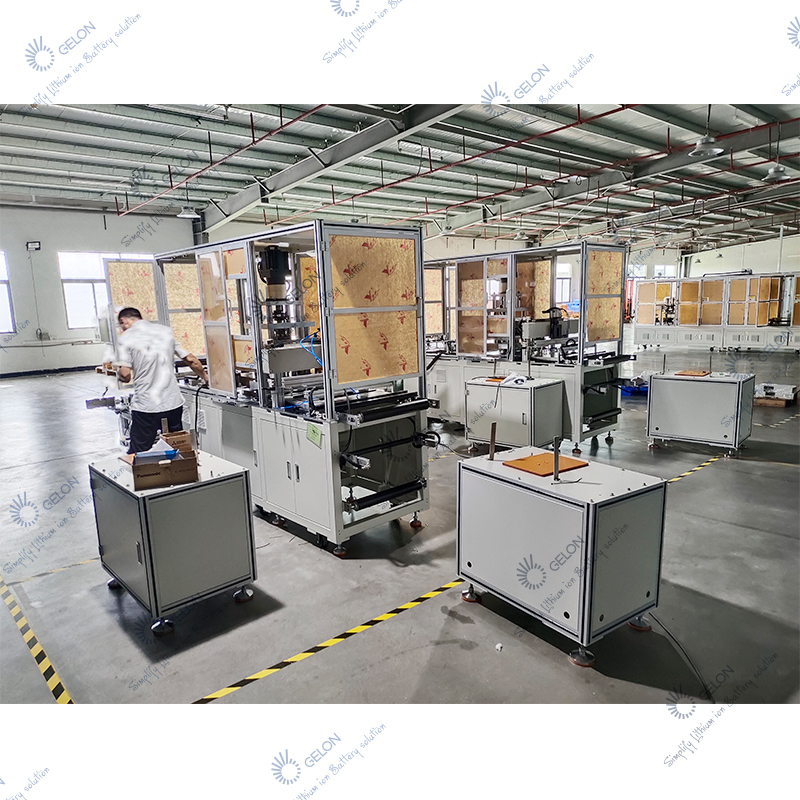

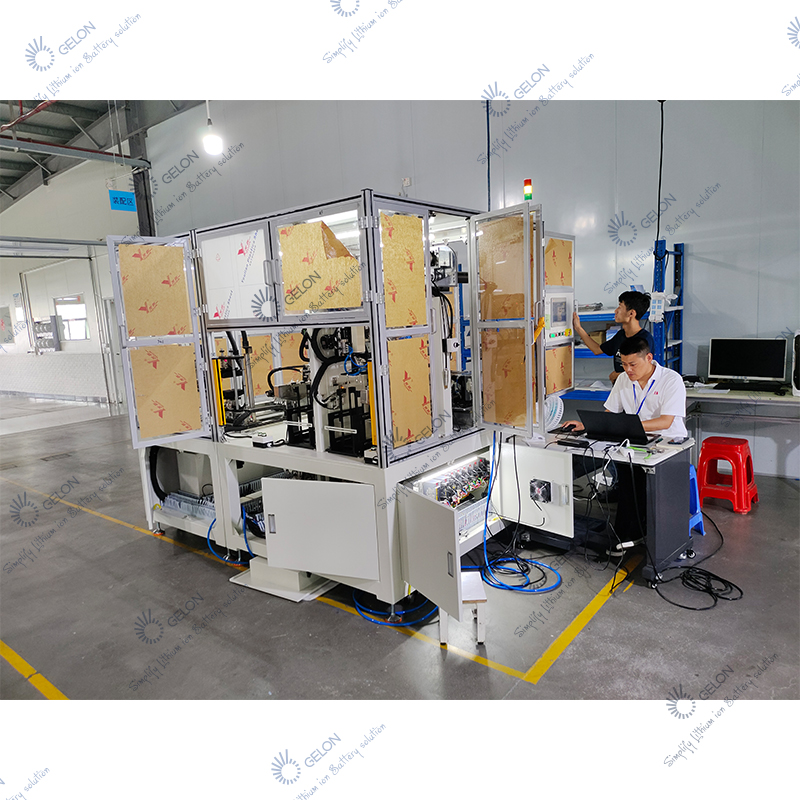

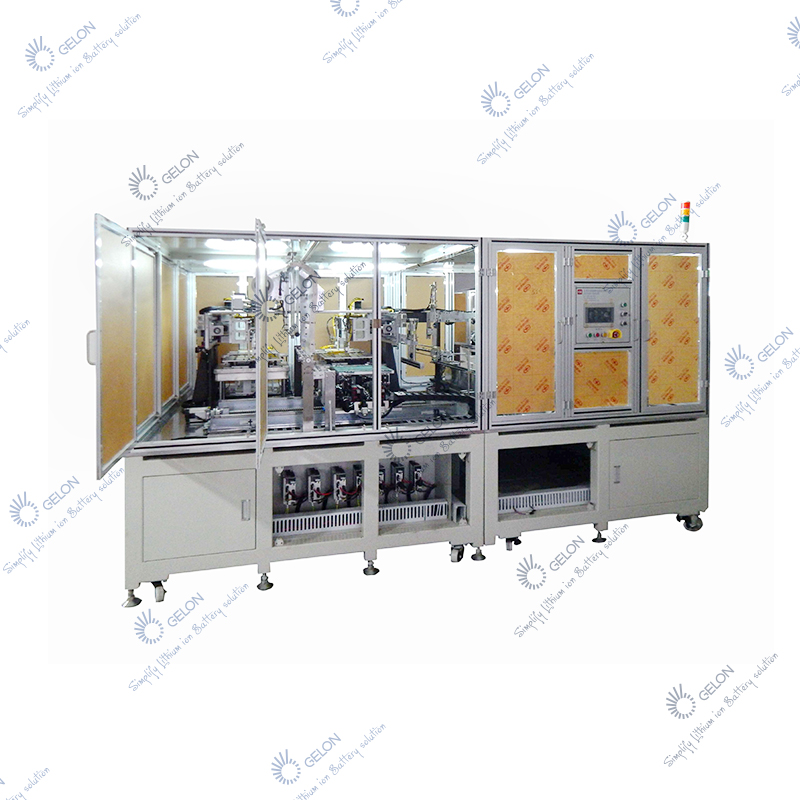

Z-Folding Pouch Cell Assembly Equipment Fully Automatic Stacking Machine Images
