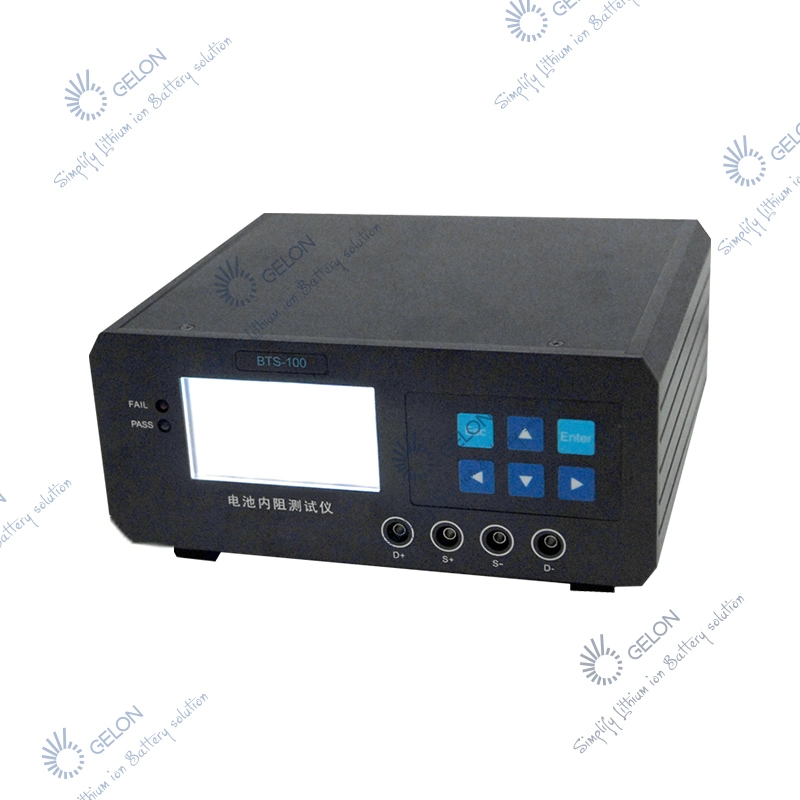

Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing 1, the initialization of the battery (charging)
2, the battery load voltage measurement
3, battery AC resistance measurement
4, the battery discharge performance test
5, battery discharge protection function detects overcurrent
6, the battery short-circuit protection function tests
7, the battery charging performance detection Detection
8, the resistance (to identify resistors, thermistors, VFR or CFR resistance) test
9, the auxiliary battery voltage (eg HDQ voltage) detection

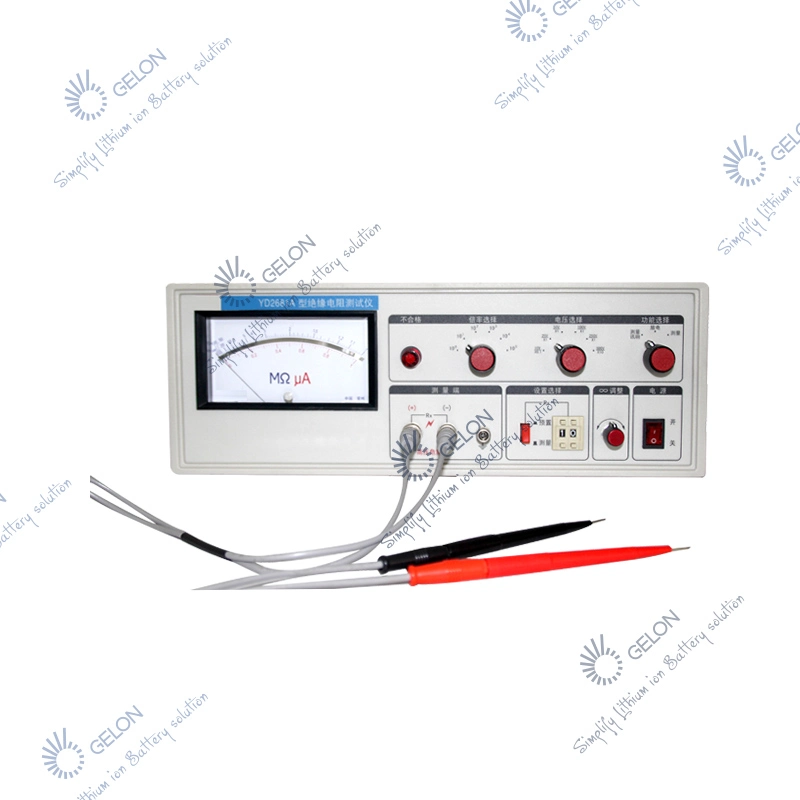

10, the insulation resistance testing
Supply voltage: 220V ± 10% 50Hz-60Hz
Power consumption: 50W maximum
Weight: Weight 3.7Kg
Instrument Size: 260mm × 290mm × 110mm (LWH)
Package size: 360mm × 360mm × 160mm (LWH)
Item |
Test range |
Resolution |
Accuracy |
battery voltage |
0-10V |
0.0001V |
±( 0.05%RD+0.2mV) |
0-20V |
0.0001V |
±( 0.05%RD+0. 3 mV) |
Internal Resistant |
0- 1 000mΩ |
0.1 mΩ |
±(0. 1%RD+0.5m Ω ) |
Electric current |
0-15A |
0.001A |
±( 0. 1 %RD+ 5 mA) |
| Resistance |
0-1KΩ |
0.001 KΩ |
±( 0.5%RD+0.005 KΩ ) |
1KΩ-10 KΩ |
0.001 KΩ |
±( 0.5%RD+0.005 KΩ ) |
10 KΩ-100 KΩ |
0.01 KΩ |
±( 0.5%RD+0.05 KΩ ) |
100 KΩ-1MΩ |
0.1 KΩ |
±( 0.5%RD+0.5 KΩ ) |
Boost Voltage |
0-5V |
0.0001V |
±( 0.1%RD+0.001V) |
Insulated resistance |
0-100 MΩ |
0.01 MΩ |
±(0. 1%RD+0.05M Ω ) |
We could supply one stop solution ( Turkey project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
