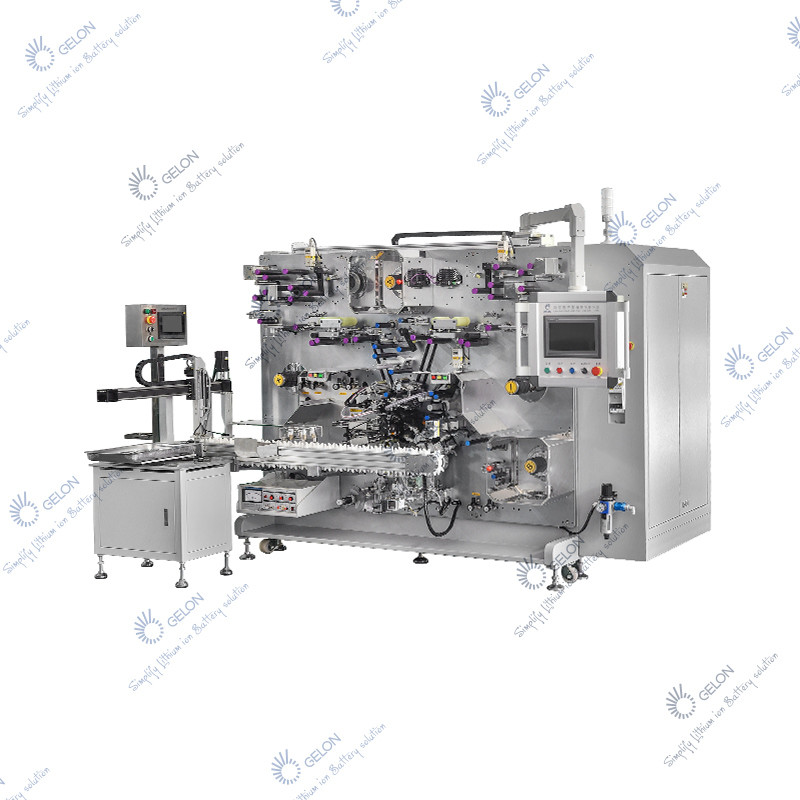

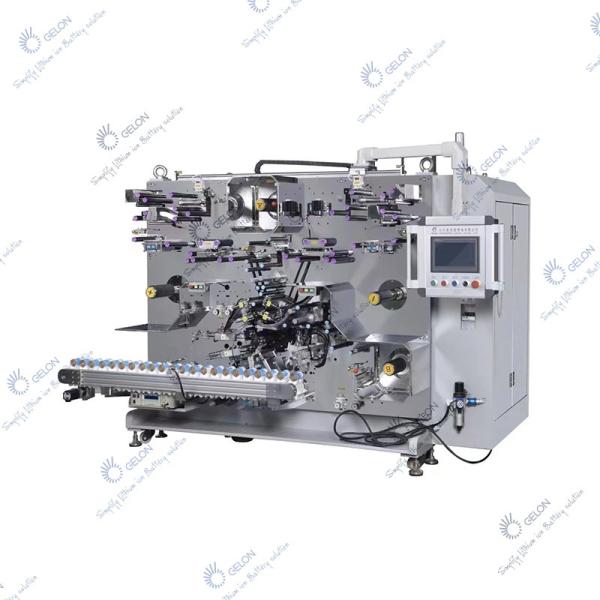

Cylinder Cell 4680 Battery Manufacturing Machine Winding Machine

  • 1
  • 2

Brand Name : Gelon

Model Number : GN-4680W

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : USD 290000- 350000/pc

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 pc/ month

Delivery Time : 45-55days

Packaging Details : Standard wooden box

Product name : 4680 battery winding machine

Production capacity : ≥15ppm

OEE : ≥75%

Equipment failure rate : ≤2%

Qualification rate : ≥ 99.5% (after the official production of equipment

Mechanism1 : Electrode automatic unwinding mechanism

Mechanism2 : Automatic tape splicing mechanism for Electrode biaxial reel change

Mechanism3 : Automatic correction mechanism of Electrode and separator

Mechanism4 : CCD

Mechanism5 : Electrode dust removal and iron removal mechanism

Warranty : one year

Contact Now

Cylinder Cell Battery Production Line 4680 Battery Automatic Winding Machine Battery Manufacturing Machine​



This equipment is an automatic lithium-ion battery cell winding machine for power lithium battery cells, which is mainly used for the winding and forming of cylindrical cells. This equipment adopts a three-roll three-station needle winding structure;



Equipment configuration

1. Equipment size: about 5800mm (length) × 1800mm (width) × 2450mm (height); (excluding the fan, for reference only, the final equipment size is subject to the actual design).

2. Workshop ceiling net height from floor surface: ≥ 2600mm (total equipment height ≤ 2550mm).

3. Equipment weight: about 12.3T (equipment installation site ground bearing ≥ 1000KG/㎡).

4. Appearance color: standard ; or customer provided color plate (made according to customer color plate).

5. Working power: AC380V±10﹪, power 65KW, frequency 50Hz.

6. Compressed air: 0.5~0.7 MPa, using flow rate about 3000L/min, usage rate 90%.

7. Vacuum source: minimum -60Kpa.

8. Using environment: temperature 10～35℃, dew point below 20℃, no combustible and corrosive gas, no dust (cleanliness not less than 10K Class).

Equipment noise: ≤75db (measured 1m from the outer wall of the equipment)



Adapt to below Incoming materials

material Hang Scroll no. width (mm)

Single piece length

(mm)

thickness

(μm)

 Thickness difference (m) Roller diameter (mm) Max outer diameter of coil (mm)

weight

(KG)
Cathode electrode 2 60～150 1600～6000 60～280 ≤3μm Ф76.2±1 Ф 800 Max 200
Anode electrode 2 60～150 1600～6000 60～280 ≤3μm Ф76.2±1 Ф 800 Max 200
Separator 2 60～150 1600～6100 8～25 — Ф76.2±1 Ф 600 Max 80
Tape 1 2 10～30 60～120 15～40 — Ф76.2±1 Ф 200 —
